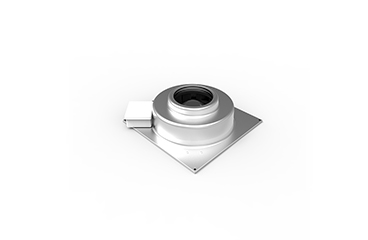

EKW is range of wall mounted fans. The fans housing and square backing plate are made of galvanised steel. They are entirely maintenance free. The range is fitted with ball bearing mounted external rotor type motors with radial backward curved impells.
· EKW is a range of wall mounted fans. · The fans are available in six sizes giving twelve different capacities. · This variety combined with ease of positioning allow for a wide variety of applications including use in damp and humid environments. · The fans housing and square backing plate are made of galvanised steel. · They are entirely maintenance free. · The range is fitted with ball bearing mounted external rotor type motors with radial backward curved impellers. · The fans speed can be controlled by voltage variation.
EKW100M
EKW100H
Voltage/Frequency
V/50 Hz
230
230
Phase
~
1
1
Power
W
35
60
Current
A
0.157
0.292
Maximum air flow
m 3 /h
191
248
R.p.m.
min -1
2288
2617
Max. temp. of transported air
℃
70
70
Max. temp. of transported air when speed-controlled
